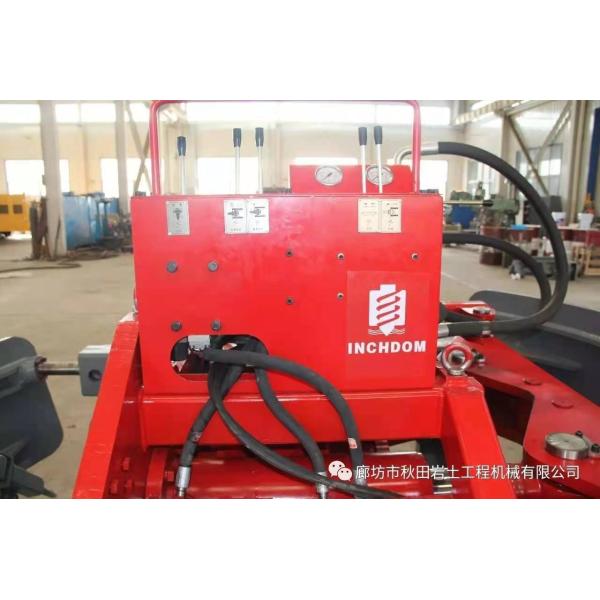

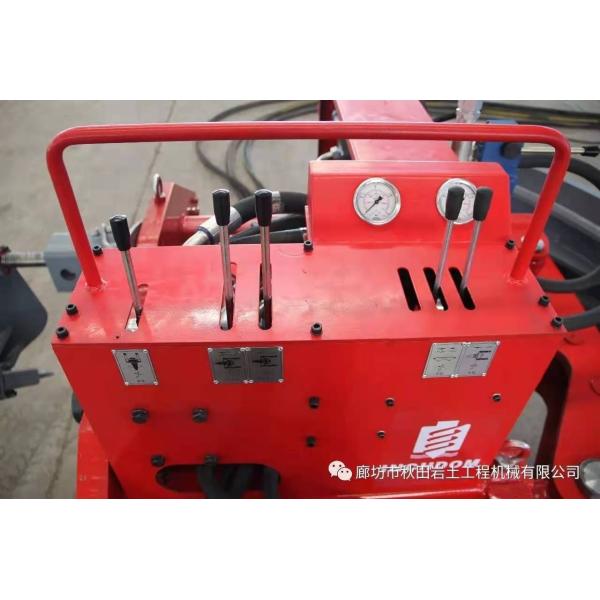

119kw And 24Mpa Borehole Guided Auger Boring Machine BGD - 120S

  • 1
  • 2

Brand Name : Bealong

Model Number : BGD-120S

MOQ : 1 set

Price : Negotiable

Packaging Details : standard

Payment Terms : L/C D/A D/P T/T

Certification : ISO 9001

name : Guided Auger Boring Machine

application : Underground Pipe Laying

max.torque(Nm) : 24000

high rotating speed(r/min) : 0-50

low rotating speed(r/min) : 0-25

pushing force(t) : 120

Contact Now

119kw And 24Mpa Borehole Guided Auger Boring Machine BGD - 120S

  • The Model BGD-120S is lately put in our product line of guided auger boring pipe jacking drill rig.
  • It is specially designed to be used at narrow operating site,with length of 3.2m,laying ø323mm to ø630mm product pipes,each pipe section of 1m.
  • All the hydraulic parts used in this rig are globally well known brands.
  • The output rotating speeds and torques of the drill rig are adjustable according to drilled earth formation by operator.
  • Customers have options to choose driving power of the drill rig between CUMMINS standard engine power and electric motor power with low emission .

History:

Our company is located at Langfang city, the "bright pearl city" of Beijing & Tianjin corridor, with beautiful environment, convenient traffic facilities and distinct regional advantages, 50Km distance both to capital Beijing & Tianjin.

We keeps serving worldwide customers with high quality products since 2012.

Competitive Advantage:

1. Convenient, high efficiency

2. High quality

3. Reasonable price

4. Good service

Service

Our company is professional at developing, producing and marketing diversified anchor drill rigs. Based on learning and deep understanding foreign advanced technology, we developed independently BHD series of multifunctional hydraulic anchor drill rigs. Various types of anchor drilling rigs have been successfully put on market, they find usage at anchor and micropile engineering field for construction pit, subway, tunnel, railway, highway and disaster relief projects with higher productivity.

Specifications:

Engine DCEC QSB4.5-C160Ⅲ
Rated output at 2200 rpm kw 119
Electric system V 24
Fuel tank capacity L 380
Hydraulic system Mpa 24
Auxiliary hydraulic system pressure Mpa 20
Hydr. oil tank capacity L 850
Max. torque at low speed Nm 24000
High rotating speed r/min 0-50
Low rotating speed r/min 0-25
One step stroke mm 300
Spindle clearance to ground mm 673
Rotary head drifting distance mm 320
Pushing speed m/min 0-0.5
m/min 0-1.25
Pushing force t 120
Duct tube diameter(optional) mm Φ325-Φ711
Dimension of power pack mm 2280*1890*1620
Power pack weight Kg 2400
